API602, Class800LB, SW / NPT End, Forged Steel Y type Strainer

Name: API602 Class800LB SW NPT End Forged Steel Y type Strainer
Brand: TEYI
Price: 1 USD

Brand Name : TEYI

Model Number : GY61H

Certification : CE/API/ISO/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : L/C at sight, T/T, Westem Union

Supply Ability : 5000PCS per month

Delivery Time : 5-7working days after received payment

Packaging Details : Packed in carton firstly, and then reinforced with wooden case for outer packing

Product Name : Forged Steel Strainer

Material : A105N,LF2

Size : 1/2 inch to 2inch

Pressure : Class800LB

Connect End : SW, NPT

Medium : Water, Oil. Gas, Steam

Working Temp. : -29 to 550 ℃

Inspection Standard : API 598

Contact Now

Standard:

1. Design Standard: API602,BS5352

2. Material Pressure-Temperature Standard:ASME B16.34

3. Face to Face Dimension Standard:ASME B16.10

4. Flange dimension standard: ASME B16.5

5. Socket Welded Ends conform to ANSI B16.11

6. Screw ends conform to ANSI B1.20.1

5. Inspection and Test Standard:API598

Descripition:

1. Screw bonnet, Bolt bonnet, Butt-Welded bonnet

2. Full port and Reducing Port

3. A threaded and Pressure seal bonnet

4. Materials conform to ANSI/ASTM

Specifications:

Material of main Parts	Body	A105/A105N, LF2
	Screen	SS304/SS316
	Gasket	Graphite
	Cover	A105/A105N, LF2
	Drain plug	A105/A105N, LF2
Operation	Actuator
Working Temperature	-29 to 550℃
Working Medium	Water, Oil

Dimmension:

API602, Class800LB, SW / NPT End, Forged Steel Y type Strainer

SIZE	1/2"	3/4"	1"	11/4"	11/2"	2"
L	98	98	111	140	140	155
H	70	70	100	110	120	120

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality on the market.

Product Tags:

y strainer valve

y pattern strainer

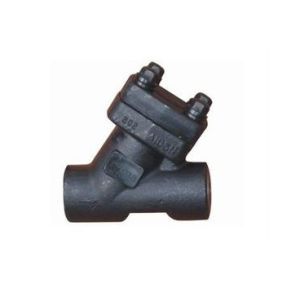

Buy cheap API602, Class800LB, SW / NPT End, Forged Steel Y type Strainer product
